Point to Point Data Links

TP-LINK CPE210 Pharos Outdoor 2.4Ghz 9dBi WiFi Point-to-Point System (300Mbps N)

The TP-LINK CPE210 Pharos Outdoor 2.4Ghz 9dBi Wireless-N Point-to-Point kit is part of the Pharos CPE range that is dedicated to cost-effective solutions for outdoor wireless networking applications. With its centralised management application, this kit is ideal for point-to-point, point-to-multipoint and outdoor Wi-Fi coverage applications. Professional performance, coupled with user-friendly design, makes this TP-LINK CPE210 an ideal choice for both business and home users.


Key Features

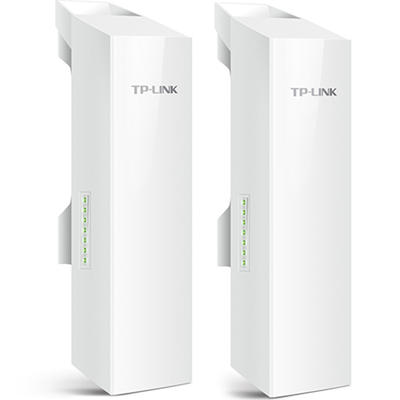

Point-to-Point bridge system includes two TP-LINK CPE210 links.
Built-in 9dBi 2×2 dual-polarized directional MIMO antenna using 2.4GHz band.
Adjustable transmission power from 0 to 27dBm/500mw.

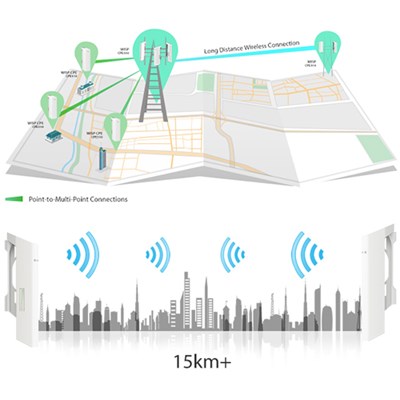

System-level optimisations for more than 15km long range wireless transmission.
TP-LINK Pharos MAXtream TDMA (Time-Division-Multiple-Access) technology.
AP / Client / Repeater / AP Router / AP Client Router (WISP) operation modes.
Centralised Management System – Pharos Control.
Passive PoE Adapter supports up to 60 meter (200 feet.)

Pharos Control – Centralised Management System

This TP-LINK CPE210 also comes equipped with centralised management software that helps users easily manage all the devices in their network from a single PC – Pharos Control. Functions like device discovery, status monitoring, firmware upgrading, and network maintenance can be managed using Pharos Control.

Enterprise Hardware Design

With Qualcomm Atheros enterprise level chipsets, high gain antennas and high quality material, specially designed enclosure, and PoE power supply, a TP-LINK CPE210 is specially designed for outdoor use and can operate flawlessly in almost any climate, with operating temperatures ranging from -30C (-22F) to +70C (158F).

Advanced Antenna System

Built-in High Gain Dual-Polarized 9dBi Antenna and dedicated metal reflection ensures higher gain and lower noise interference..

High Power and High Sensitivity

In advanced, high power Tx (up to 27dBm/500mw) and high sensitivity Rx (up to -95dBm) radio front-end design breaks down the barriers of traditional Wi-Fi transmission range, making the TP-LINK CPE210 an ideal product for outdoor wireless networking applications.

Weatherproof Design

With its outdoor weatherproof enclosure and industrial-level hardware design, the TP-LINK CPE210 can continue operating in various weather conditions, such as sunshine, rainfall, wind, snow or extremely low/high temperature environment (-30C~70C).

Double Protection against ESD Attacks

Besides its grounding terminal, the TP-LINK CPE210 offers another way to eliminate ESD attacks via the PoE adapter and Ethernet cable with grounding wire. The TP-LINK CPE210’s additional security measures provide up to 15KV ESD and 6000V lightning protection for more reliable operation.

TP-LINK MAXtream TDMA Technology

As network scale increases, wireless competition and collisions among CPEs and base stations will be so enormous that the real throughput of the network will drop, resulting in a serious impact on end-user experience, to mitigate these effects, the TP-LINK CPE210 uses MAXtream TDMA Technology.

Standard warranty: 3-years
